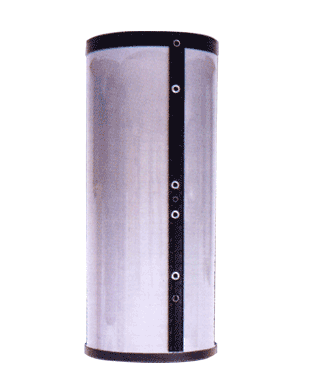

Stainless Steel Cylinders
McCallums stainless steel range encompasses direct and indirect cylinders with capacities from 200ltrs to 25000ltrs.
All cylinders are suitable for a maximum secondary working pressure of 10 bar and for use on both vented and un-vented systems.
| Capacity (ltrs) | Height (mm) | Diameter (mm) | Base (mm) |
|---|---|---|---|
| 440 | 1800 | 600 | +100 |
| 550 | 1700 | 675 | +100 |
| 700 | 1750 | 750 | +100 |
| 800 | 1950 | 750 | +100 |
| 900 | 2000 | 800 | +100 |
| 1000 | 2200 | 800 | +100 |
| 1000 | 1950 | 850 | +100 |
| 1200 | 2100 | 900 | +100 |
| 1350 | 2350 | 900 | +100 |
| Capacity (ltrs) | Height (mm) | Diameter (mm) | Base (mm) |
|---|---|---|---|
| 1500 | 1950 | 1050 | +150 |
| 1800 | 2300 | 1050 | +150 |
| 2000 | 2500 | 1050 | +150 |
| 2300 | 2400 | 1150 | +150 |
| 2500 | 2450 | 1200 | +150 |
| 3000 | 2950 | 1200 | +150 |
| 3500 | 2700 | 1350 | +150 |
| 4000 | 3050 | 1350 | +150 |
| Max Capacity 15000 litres | |||
